FEEDING SYSTEM

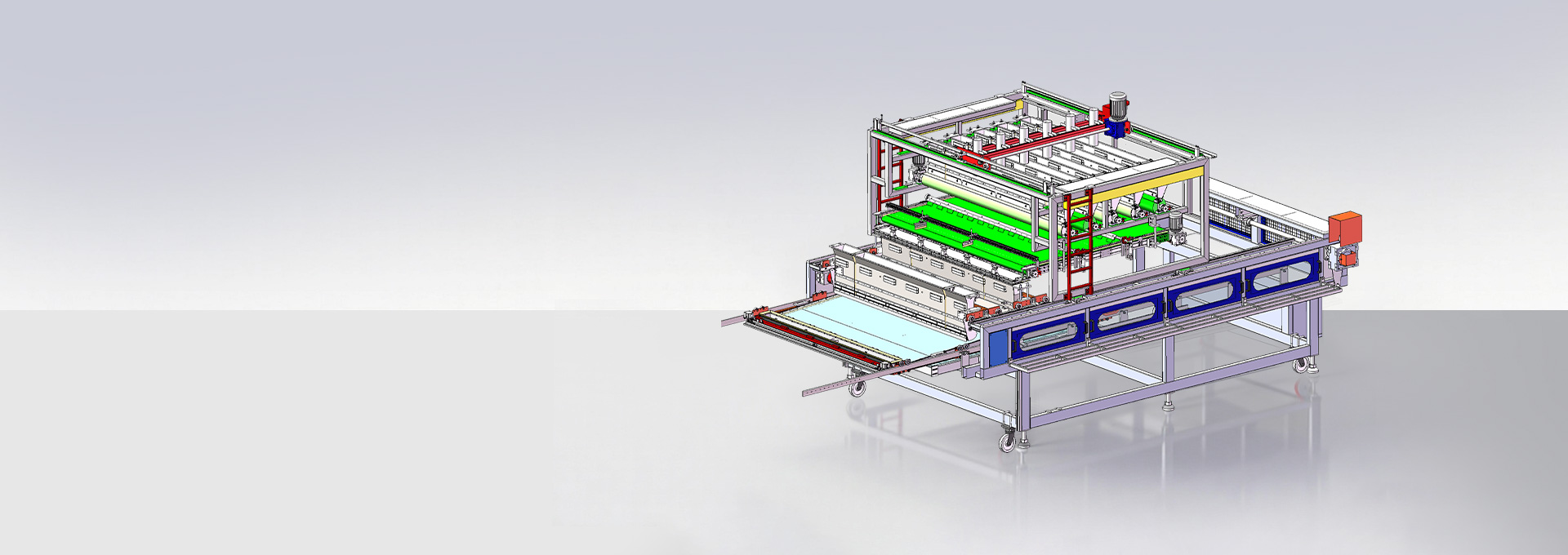

SLIM-TECH BELT TYPE FEEDING SYSTEM

SLIM-TECH BELT TYPE FEEDING SYSTEM ADVANTAGES

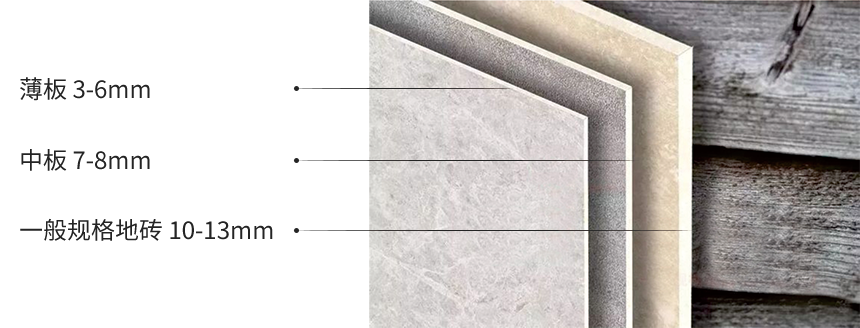

It can produce big slabs with the size more than 2400mm, and the thickness can be adjusted easily from 3mm-30mm. The biggest advantage of belt type feeding is that it can make thinner slabs, which solves the technical problems of traditional grid type feeding--grid mark and unstable production thickness. The pattern is also more natural and controllable than the traditional grid type feeding.

PARAMETERS

SPECIFICATION DETAIL
Total Power 20KW
Drive Voltage 380V/415V
Control Voltage 24V
Air Pressure 6kg/cm2
Press Model All Series(KEDA, SACMI, HLT, etc.)
Max Stroke 2000mm
Weight 3-5T
Total Length ≤ 4.8m
General Feeding Size 750×1500×1C / 800×1600×1C / 900×1800×1C / 1000×1000×1C / 1200×1200×1C / 1000×2000×1C
